Audi A6 e-tron lights technology

The Audi A6 e-tron has advanced light options for headlights, daytime running lights, and tail lights.

Headlights & Daytime running lights

There are three different levels of headlights & DRL on the Audi A6 e-tron.

Standard LED headlights & DRL

As standard, Audi delivers the Audi A6 with LED headlights and DRL.

The LED headlights produce illumination of the road similar to daylight and impress with their low level Energy consumption, a long service life and good visibility for others.

The LED headlights include the following functionalities:

  • Dimmed headlights
  • High beam
  • Daytime running lights
  • Position light
  • Flashing light

Audi A6 e-tron with standard LED headlights

LED Plus headlights & DRL

The LED headlights plus produce illumination of the road similar to daylight and impress with their low energy consumption, long service life and good visibility for others.

Adaptive lighting functions adapt the illumination of the road to the respective driving situation.

The dynamic lighting of the coming home/leaving home function provides additional brightness on the way to and from the vehicle.

The LED headlights plus include the following functionalities:

  • Visually enhanced/digital daytime running lights with 61 segments
  • Dimmed headlights
  • High beam
  • Position light
  • Flashing light
  • Lyktespylere
  • Cornering light (supplement to the side lighting when turning)
  • All-weather light (to reduce glare in poor visibility conditions)
  • Highway lights (extended lighting range at high speeds)
  • Static cornering light (supplement to the side illumination in tight curves)
  • Maneuvering light (illumination of the maneuvering area at the front side when reversing)
  • automatic-dynamic headlight range adjustment
  • Crossing light (supplement to the side lighting in the crossing area in conjunction with MMI navigation plus)
  • Dynamic lighting for the coming home/leaving home function while stationary

Audi A6 e-tron med LED Plus-lykter og Matrix DRL

With this headlights you have the hardware for LED Matrix. This can be ordered as function-on-demand.

LED Matrix headlights

The Audi Matrix LED technology enables precise and high-resolution illumination of the road. Glaring effects on oncoming or preceding vehicles can be significantly reduced.

If vehicles are detected by the camera system, the system selectively hides only this area, while the high beam remains active in the remaining segments. The significantly improved illumination of the road compared to LED headlights can increase safety and comfort when driving in the dark.

Audi A6 e-tron with standard LED headlights

Tail lights

Also in the rear there are three options

LED rearlights

The light signature is a visible identification mark to the rear. The brake lights in LED technology enable them to be noticed earlier by the driver thanks to their quicker activation subsequent traffic. The LED tail lights include:

  • Flashing lights
  • Brake-lights
  • Rear lights
  • Rear license plate lights
  • Reversing lights

LED Pro

The light signature with a continuous strip of lights is a visible identification mark towards the rear. The illuminated light strip in the rear connects the rear lights and is a visual design highlight. The brake lights in LED technology enable them to be noticed earlier by the driver thanks to their quicker activation subsequent traffic. When flashing, the dynamic flashing light always runs to the outside in the direction of the turn and is therefore easily noticeable. The dynamic lighting of the coming home/leaving home function begins across the entire lighting strip progressive statement and provides additional brightness on the way to and from the vehicle. The LED rear lights pro include:

  • dynamic flashing lights
  • Brake-lights
  • Rear lights
  • Rear license plate lights
  • Reversing lights
  • illuminated strip of lights
  • Dynamic lighting for the coming home/leaving home function while stationary

OLED

With second-generation digital OLED rear lights, the Audi A6 e-tron is taking light design, range of functions, and road safety to a new level.

Audi is gradually developing the technology into intelligent displays that can communicate with other road users by displaying information via the exterior lights – this is the new communication light. The active digital light signature is another world first making its debut in the Audi A6 e-tron. It makes an entirely new and vibrant impression, pointing the way to the future of Audi lighting technology. For the first time, customers can optionally select digital light signatures for this new evolution of digital daytime running lights in the Matrix LED headlights and the new generation of digital OLED rear lights. In addition, customers may book digital light signatures on demand.

The A6 e-tron not only marks a new chapter in electromobility at Audi; lighting technology is an important part of Audi’s DNA. With the world’s first active digital light signature, the Audi A6 e-tron ushers in a new era characterized by distinctive design and aesthetics unique to Audi.

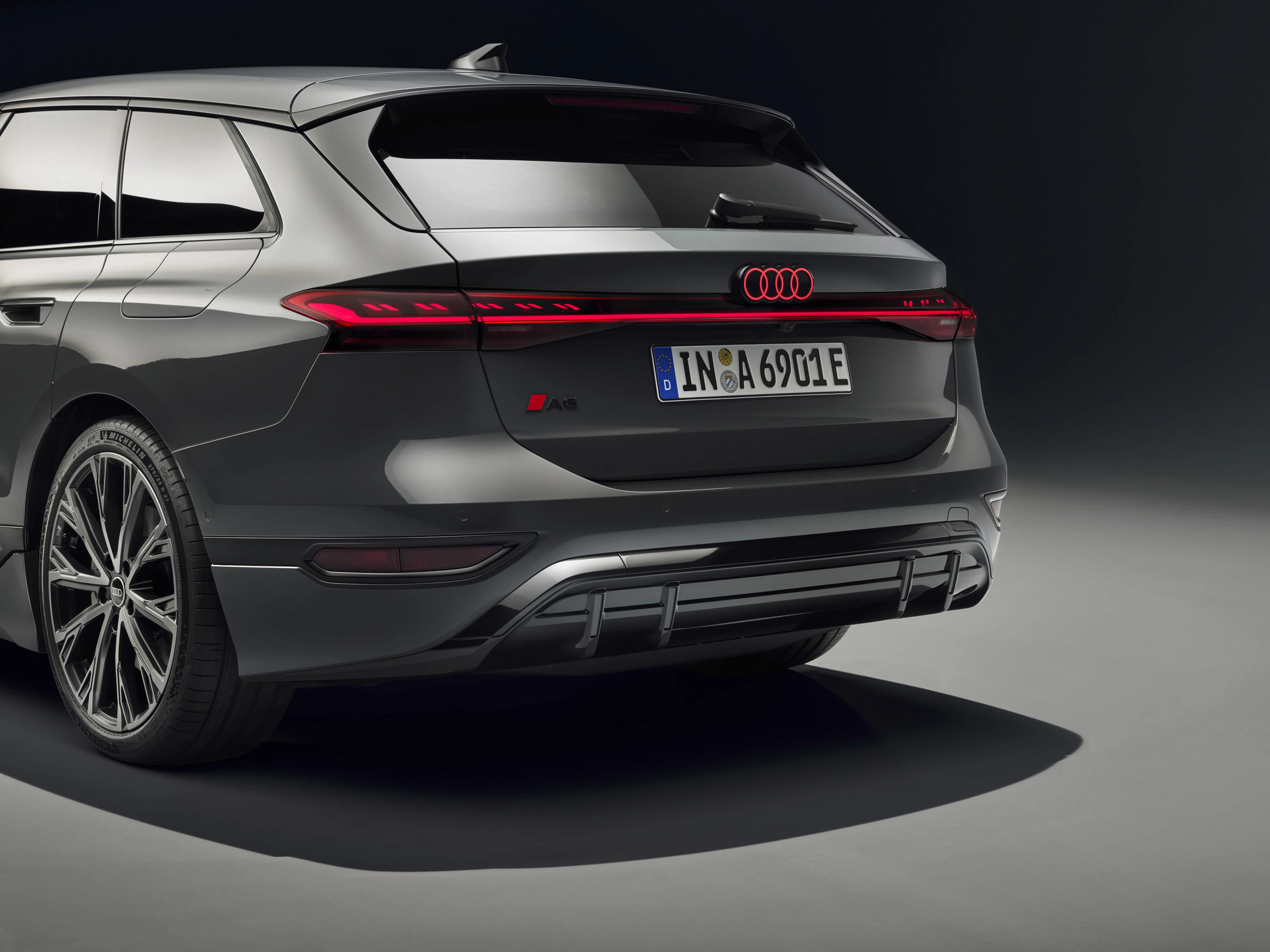

Audi A6 e-tron rear lights

The second-generation of digital OLED technology shapes the look of new Audi models and increases their range of functions many times over. This, in turn, improves road safety, as impressively demonstrated by the communication light in the digital OLED rear lights. The A6 e-tron also sets new standards in personalization: With a total of eight optional digital light signatures in the redesigned daytime running lights in the Matrix LED headlights and digital OLED rear lights 2.0, customers can design the look of their A6 e-tron like never before. This is possible via the MMI and, for the first time, via the myAudi app. Customers are also able to buy digital light signatures after purchasing their car.

Signature and movement combined for the first time: the active digital light signature

The headlights and rear lights look alive at first glance – this is how customers should imagine the active digital light signature, a world first from the brand with the four rings. It comes as part of the optional package of digital light signatures. “The Audi A6 e-tron marks the first time in a production model that we are designing both the shape of the lights and their entire movement. Thanks to a perfect symbiosis between lighting design and the new technology, the new Audi A6 e-tron lights look more vibrant and intelligent than ever before. We’ve given the light signatures their own personality and the digital world its own aesthetics at the same time”, explains César Muntada, Head of Lighting Design. “With the world’s first active digital light signature, the A6 e-tron is ushering in a new era of distinctive design and aesthetics unique to Audi.”

A software module in one of the Audi A6 e-tron’s domain computers, jointly developed by Audi and the Group’s software company CARIAD, makes this type of light signature possible. In the case of the second-generation digital OLED rear lights, the six 360-segment OLED panels generate a new image every ten milliseconds using a specially developed algorithm. This algorithm lets the active digital light signature demonstrate the car’s vibrancy and ability to interact personally by making the A6 e-tron’s “brain activity” visible through constant movement. The active digital light signature at the front is created via the interaction of the algorithm with 12 dimmable segments, while at the rear, all the digital OLED segments are used. The individual light segments interact so that the light signature’s overall image does not vary in luminous intensity.

The second-generation of digital OLED technology

A brief overview of digital OLED technology 1.0: In 2016, Audi introduced a new lighting technology to the automotive industry in the TT RS. It was the first time organic LEDs (OLEDs for short) were used for rear lights. OLED elements are semiconductor-based surface light sources that generate light with perfect homogeneity and high contrast values. Their brightness is also adjustable. In addition, the shape of OLED lights can be configured freely and divided precisely into switchable segments. Dynamic lighting scenarios in the OLED rear lights also debuted in the Audi TT RS.

In 2020, Audi Q5 customers could select an individual rear light signature for the first time thanks to the digital OLED rear lights. With this accomplishment, Audi became the first automotive manufacturer to modify the rear light signature digitally. The shift was based on OLEDs’ core properties: high contrast, segmentation into switchable zones, high light homogeneity, and the ability to arrange the segments very tightly. Audi remains the only car manufacturer to offer this evolution of technology.

In 2022 this option became standard in the Audi A8 with digital OLED rear lights. The car’s bus system allowed its software to control each rear light panel and each OLED segment individually. In the A8, customers could select from three rear light signatures via the MMI; in the S8, they could choose from four.

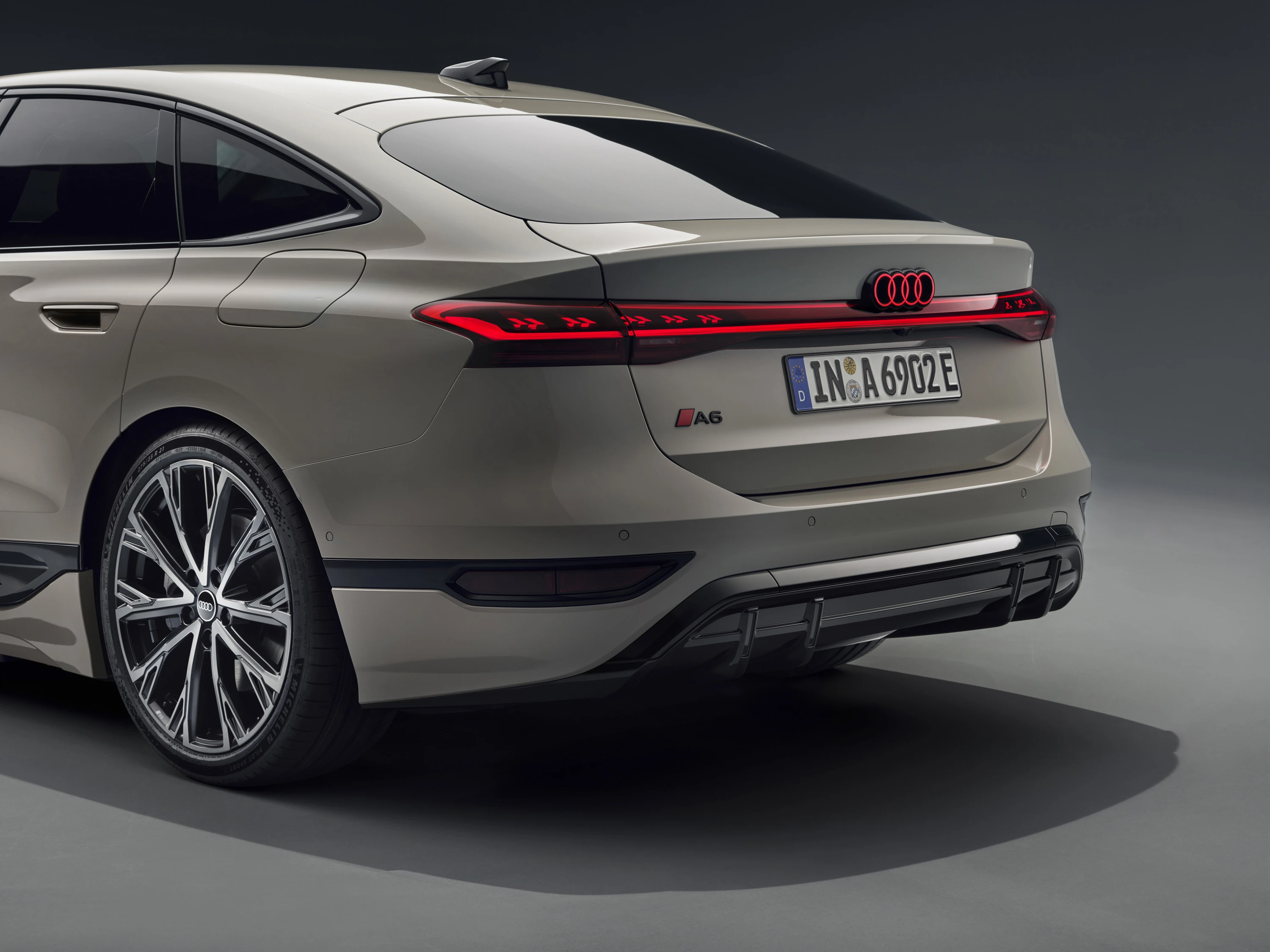

Audi A6 e-tron with OLED taillights

“Audi recognized the potential of using OLED technology in rear lights early on and has since continued to systematically advance their development and digitalization as the only car manufacturer to do so. As a result, we can now offer our customers an ever-new range of lighting functions,” explains Stephan Berlitz, Head of Lighting Development, demonstrating a clear strategy behind the use of this technology. “Digital OLEDs are more efficient, lighter, and more homogeneous than traditional lighting systems,” Berlitz continues, offering a glimpse of the future: “Due to their strong contrast, they are gradually turning into exterior displays, making them an important enabler of communication with the car’s surroundings. With the proximity indication function, we have been using light to interact with other road users since 2020. The Audi A6 e-tron now adds the communication light to improve road safety further.”

The second-generation digital OLED rear lights in detail

With the next generation of digital OLEDs in the rear lights that now follow in the Audi A6 e-tron, Audi is significantly expanding the range of functions and design freedom while, above all, improving road safety. For the first time, the digital OLED rear lights can specifically communicate with the immediate environment (car-to-X communication). The number of segments per digital OLED panel has increased from six to 60 compared to the first generation. Six OLED panels with 360 segments in total are used in the A6 e-tron’s rear lights. The new E3 electronic architecture makes it possible to control this significantly increased number of segments using a software module on one of the domain computers. The steady increase in the number of segments per digital OLED panel will, in the future, make it possible to develop the rear of the car into a display that further improves car-to-X communication and road safety.

The innovative digital OLED technology creates the conditions for a completely new rear light design, ensuring a one-of-a-kind homogeneity and very high contrast. There are other advantages: Surface light sources do not require additional reflectors, light guides, or optics, making them very efficient. Together, these properties allow Audi’s engineers and designers to break down the design boundaries between two- and three-dimensionality. In other words, the brand with the four rings is creating three-dimensional shapes on two-dimensional surfaces. In addition to an integrated, expressive LED light strip at the rear, 3D glass successfully separates the rear light signature from the other lighting functions.

Audi A6 e-tron headllights

Audi is also innovating the front of the car. The next generation of digital daytime running lights and the light modules are now visually separate, creating greater design clarity. The designers have designed the individual LEDs – 70 in total – in this new evolution of digital daytime running lights as transparent 3D objects. The front section of the digital daytime running lights features a precise prismatic structure, while a metalized 3D trim surrounds them to draw the focus to the car’s digital eyes.

Audi A6 e-tron with OLED taillights

Improved safety thanks to intelligent headlights and rear lights

Audi has also taken the car’s safety features to a new level. Proximity indication, a feature familiar to other Audi models, is expanded in the new A6 e-tron to include a communication light. Integrated with the digital OLED rear lights, it warns other road users forsighted of accidents and breakdowns by displaying a specific static rear light signature with integrated warning symbols and the regular rear light graphic in critical road situations. The assistance system thus aids Audi drivers forsighted and all other road users. As with the advanced traffic information system in the A8, which warns road users of accidents or hazards via the digitalized headlights, the communication light uses data from the swarm. In addition, second-generation digital OLED rear lights activate the communication light with warning symbols for emergency assist, RECAS (rear-end collision alert signal), hazard warning lights, emergency calls (eCall), roadside assistance calls (bCall), and emergency brake lights.

The communication light also adds an extra dimension to the exit warning function. Previously, it only informed the occupants when exiting the car, for example, if another car or a bicycle was approaching. But now, a specially adapted light signature in the rear light graphic warn cyclists or drivers approaching from behind. In this way, the Audi A6 e-tron extends its safety concept to other road users, increasing road safety for everyone.

Finally, the communication light also uses a specific light signature at the front and rear to indicate the car’s park assist status when it is in automated parking mode. This makes it clear to road users in the immediate vicinity that the car is safe to approach.

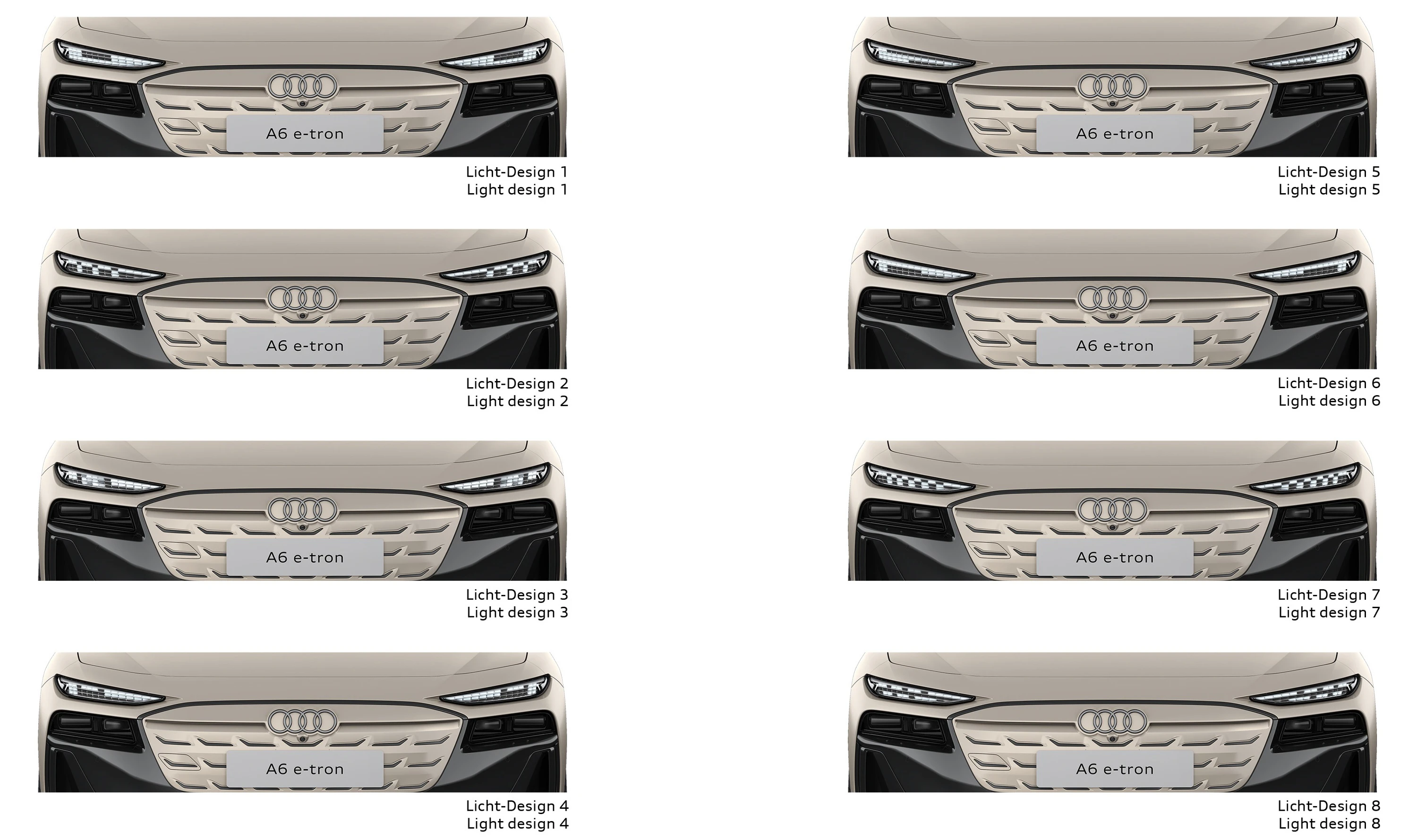

A new level of freedom: digital light signatures available via the MMI and the myAudi app

With up to eight digital light signatures for the headlights and rear lights, drivers can enjoy a new level of freedom in personalizing their A6 e-tron. Customers can select a signature in one of two ways, via the myAudi app or in the car via the MMI. Six additional signatures with a coming home/leaving home lighting scenario and the corresponding digital light signature are available through additional optional packages.

Audi A6 e-tron signature headlights

Via the myAudi app, customers can activate their personal light signatures from outside the car and experience the dynamic lighting scenario and the coming home/leaving home function right on their car. It’s the same with the communication light in the second-generation digital OLED rear lights and proximity indication. On request, the Matrix LED headlights can provide a live demonstration of the sign glare suppression and object masking features.

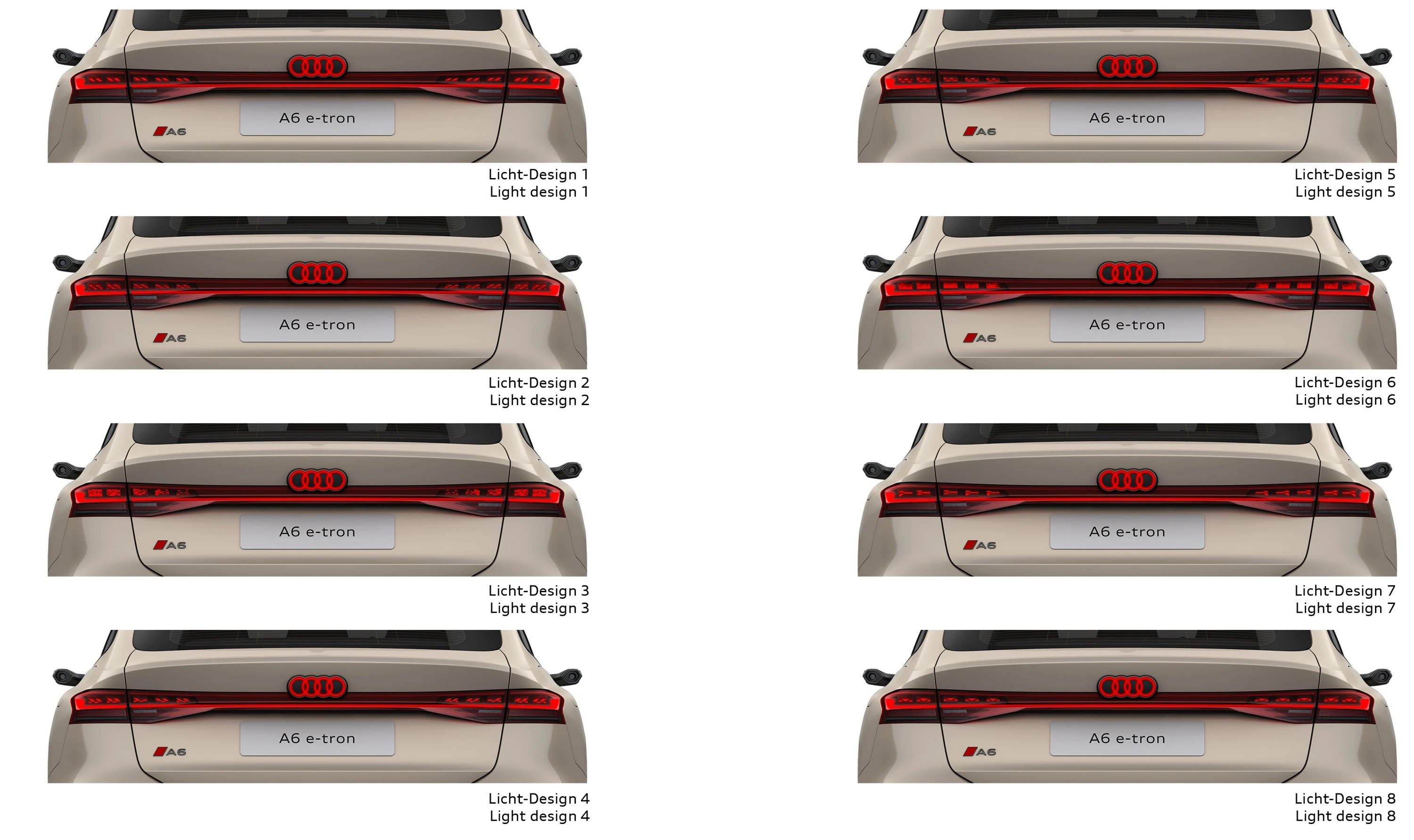

Audi A6 e-tron signature tail lights

For an even greater degree of personalization for the A6 e-tron, customers can book the package of digital light signatures for the LED headlights plus/Matrix LED headlights and digital OLED rear lights after purchasing their car using on-demand functions. Customers can purchase the features permanently or for a specific period. This flexibility lets Audi customers design their A6 e-tron with up to eight digital light signatures (only in conjunction with digital OLED rear lights and LED headlights plus/Matrix LED headlights) to suit personal preferences. Finally, they can also purchase high-beam assist and the Matrix package on demand.
