Tire Pressure Monitoring System TPMS

Audi e-tron has two different TPMS systems to choose from.

Audi e-tron is equipped with an indirect TPMS system as standard. This means it uses the ABS sensor to detect if there are wheels with low pressure compared to the others.

Direct TPMS

With direct TPMS there is an air pressure sensor in each tire that communicates with the car. This measures the temperature and pressure for each wheel and presents this in the MMI.

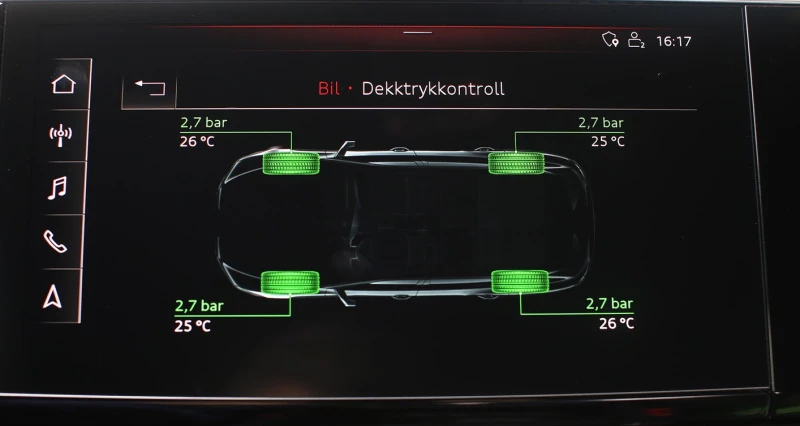

Tire Pressure Measure System

Tire pressure measure system

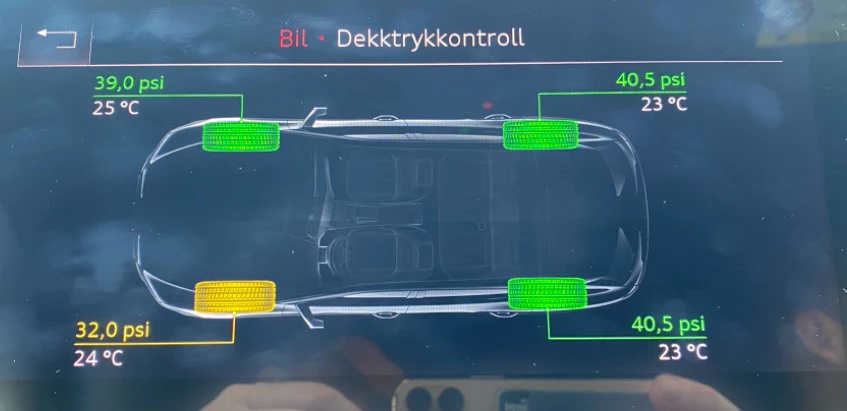

Below you see how MMI indicates that the left front tire has much lower pressure than other wheels.

Tire Pressure Measure System

Left front wheel with lower pressure

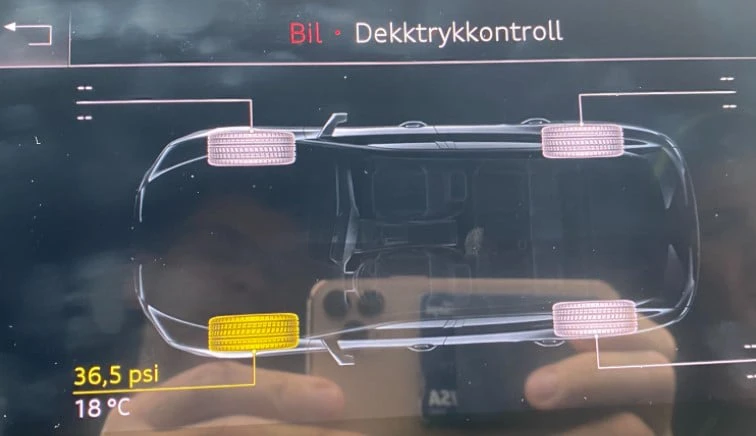

Tire Pressure Measure System

Tire pressure measure system

Option Id 7K3

Correct pressure

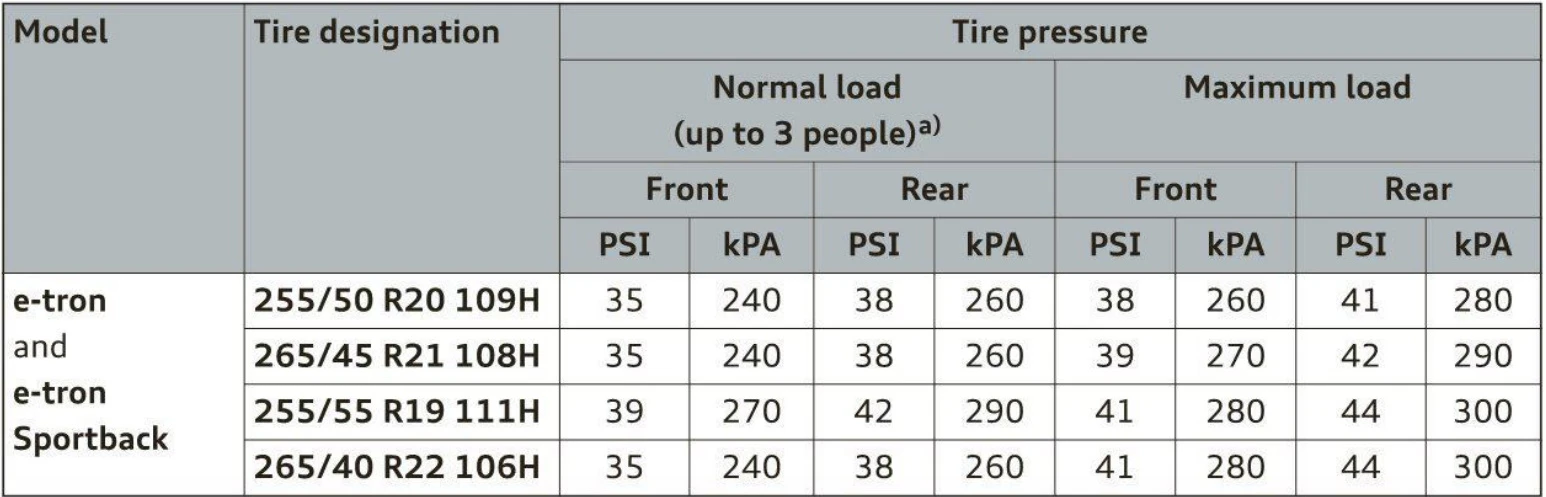

The following table shows the correct tire pressure

Correct TP Audi e-tron

Correct Tire pressure Audi e-tron
