Audi Q4 e-tron suspension
The Q4 e-tron and the Q4 Sportback e-tron integrate the best conditions for high comfort, driving pleasure, and unshakable stability.
The front axle of the compact electric SUVs is designed in the classic McPherson construction method, and the steering is located underneath at the front.

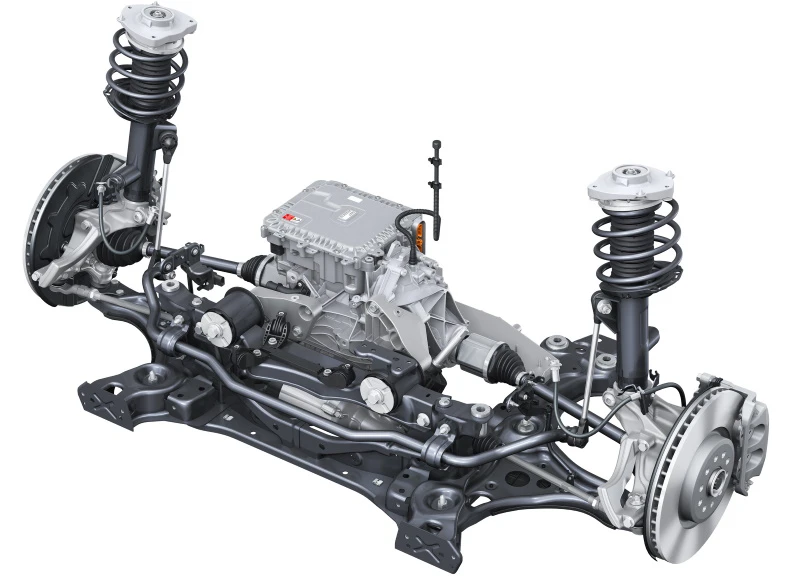

McPherson front suspension with the rear electric motor
A compact five-link design featuring similarities with the rear axle of the large Audi models works at the rear. As with the front axle, it is mounted on a subframe. Several parts of the suspension are made of lightweight aluminum.

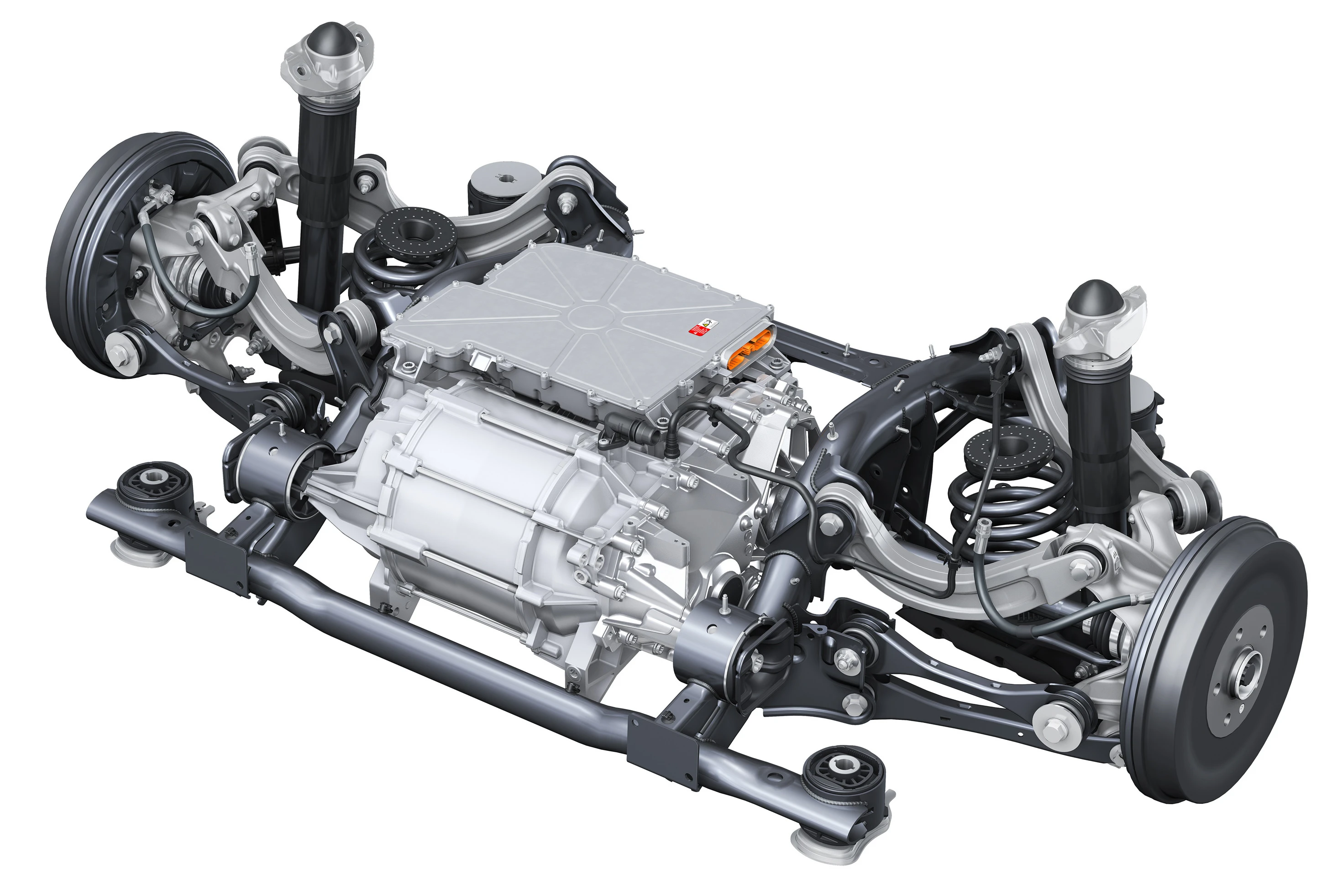

Five link rear suspension with electric motor
The track widths are 1,587 millimeters at the front and 1,565 millimeters at the rear.
You can order the Q4 e-tron with sport suspension. The sport suspension (standard in the S line) lowers the body by 15 millimeters.

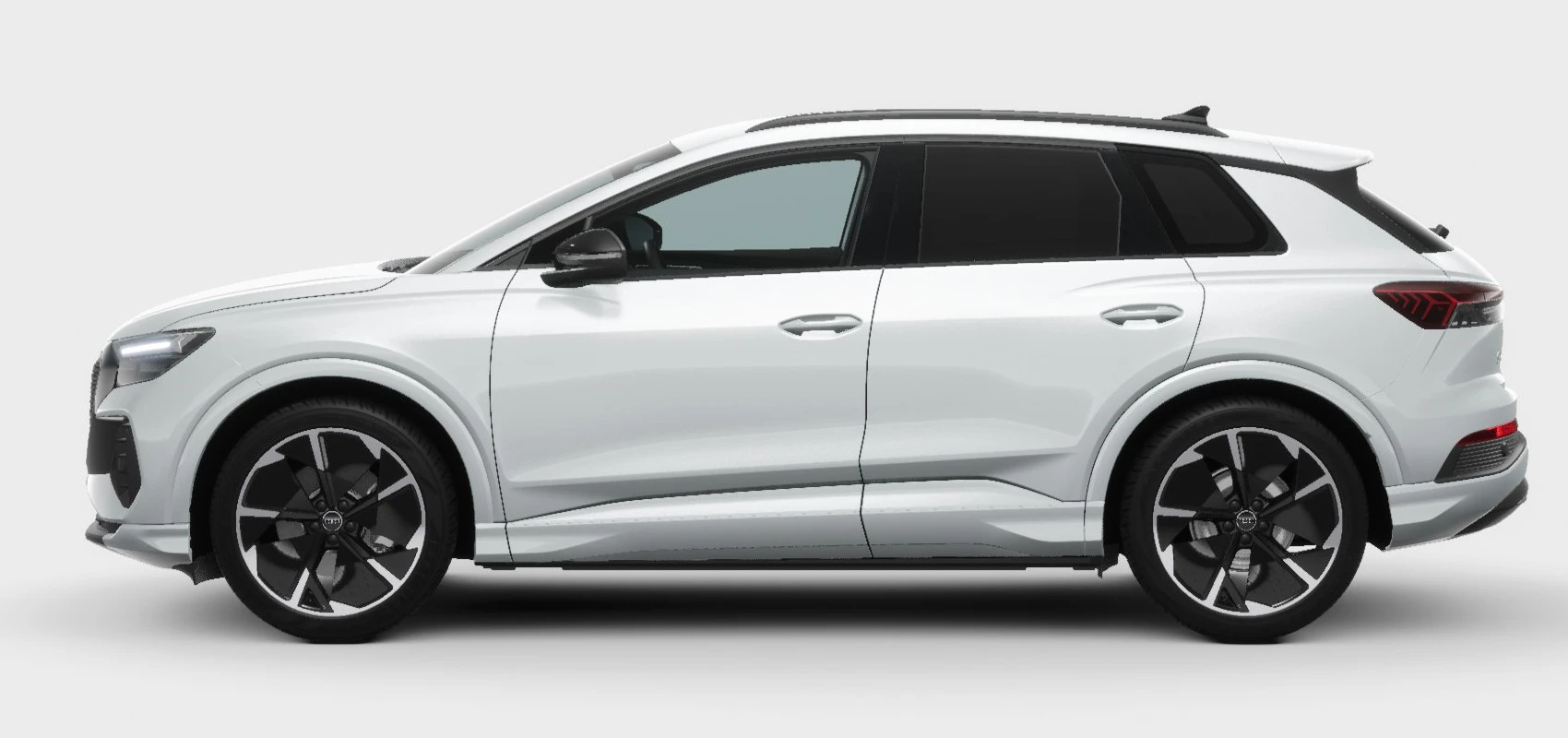

Audi Q4 S-line with standard suspension 180mm ground clearance

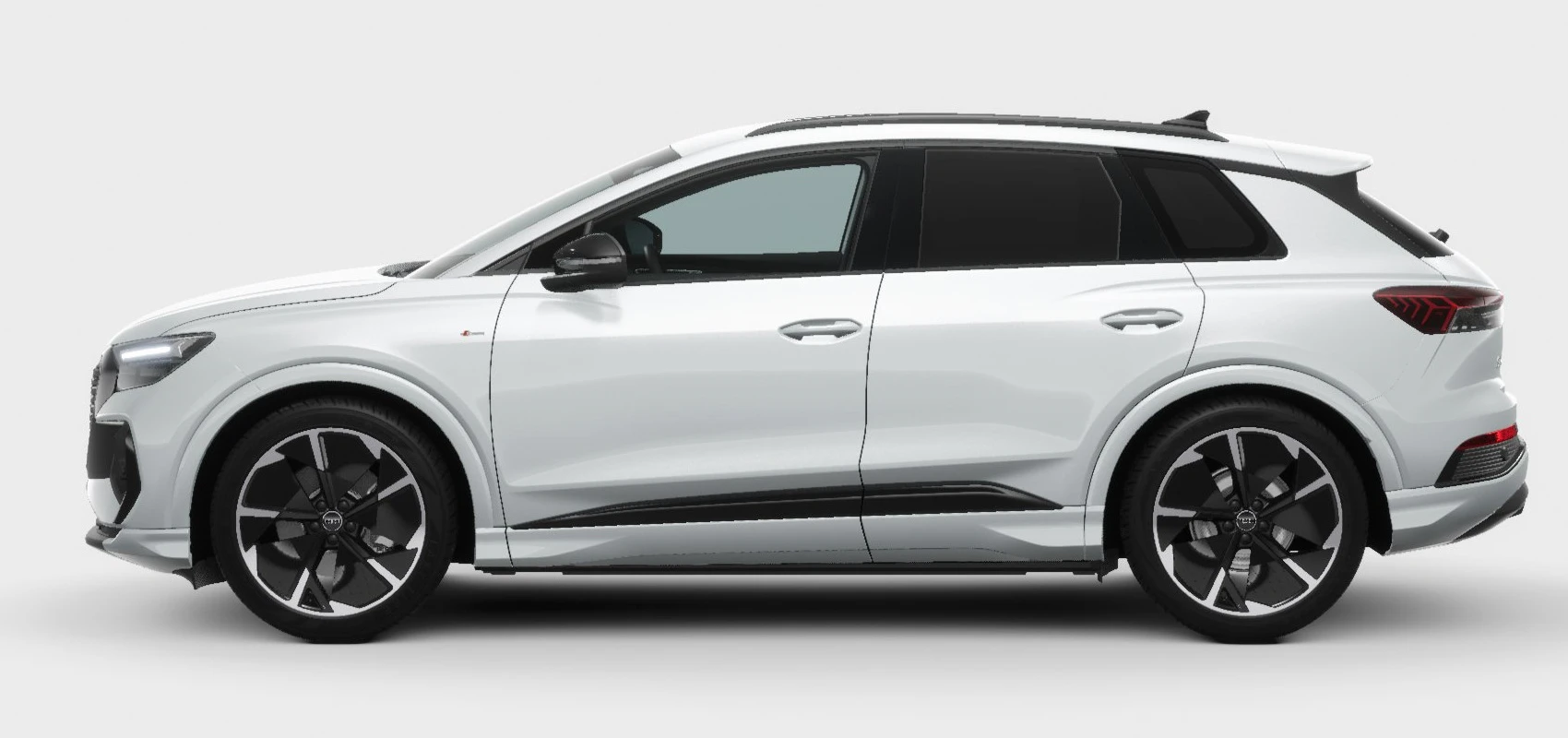

Audi Q4 S-line with S-Line suspension and 165mm ground clearance
On request, Audi can equip the two compact electric SUVs with the dynamic package or the dynamic package plus.
Dynamic package option PY8
In the dynamic package, the sport suspension (standard in the S line) lowers the body by 15 millimeters, while the conventional steering is replaced here by progressive steering (standard in the quattro models), which operates more directly the further the steering is turned.
The third element of the dynamic package is the Audi drive select dynamic handling system (standard in the Sportback), which brings new dimensions to the driving experience. With Audi drive select, the driver can switch the characteristics of the steering, the electric motors, and (in the quattro models) the electric all-wheel drive between the “comfort,” “auto,” “efficiency,” “individual,” and “dynamic” modes.
Dynamic package plus option PY9
In the dynamic package plus the suspension damping is adjustable from drive select. while the conventional steering is replaced here by progressive steering (standard in the quattro models), which operates more directly the further the steering is turned.
The third element of the dynamic package is the Audi drive select dynamic handling system (standard in the Sportback), which brings new dimensions to the driving experience. With Audi drive select, the driver can switch the characteristics of the steering, the electric motors, the suspension damping, and (in the quattro models) the electric all-wheel drive between the “comfort,” “auto,” “efficiency,” “individual,” and “dynamic” modes.
